상세 정보 |
|||
| 불순물 상술: | MR151 | 입자: | 2 |
|---|---|---|---|
| 재료: | 텅스텐 카바이드 | 표면 처리: | 마무리 접지 |
| Trs: | > 3000N/mm3 | 경도: | 85-92 HRA |
| 서비스 수명: | 10000-30000시간 | 밀도: | 14.4-13.5g/cm3 |
| 지름: | 10-20mm | 키: | 20-70 밀리미터 |
| 둥근 천장: | SR5-SR10 | 모따기: | R1.0-R5.0 |
| 대략 중량: | 108-172g | 등급: | YG11C, YG15, YG15C, YG18, YG20 |
| 월 용량: | 50 톤 | ||
| 강조하다: | Durable Tungsten Carbide Studs,Anti-Wear HPGR Studs,Customized Cemented Carbide Studs |
||
제품 설명

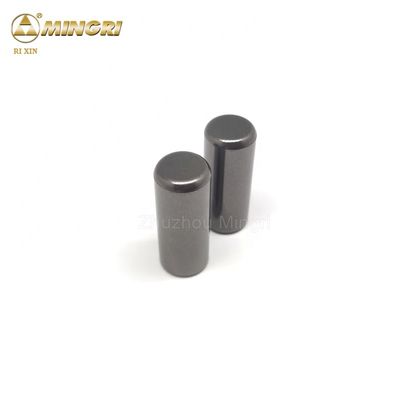

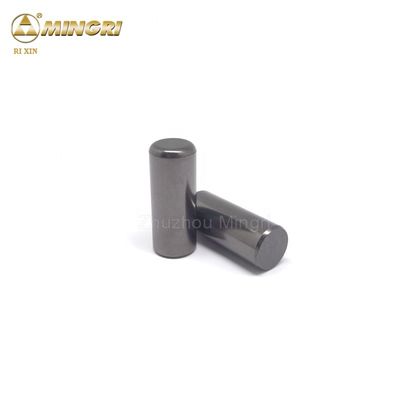

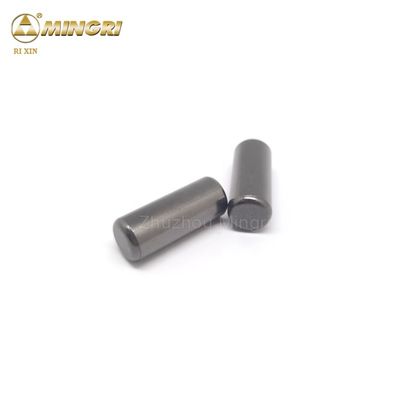

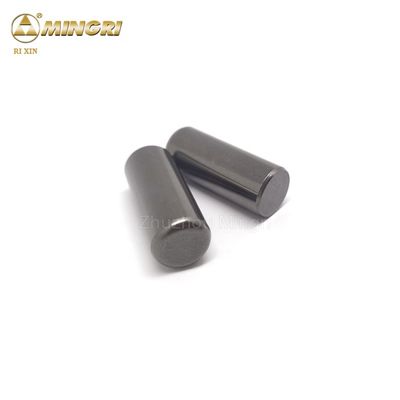

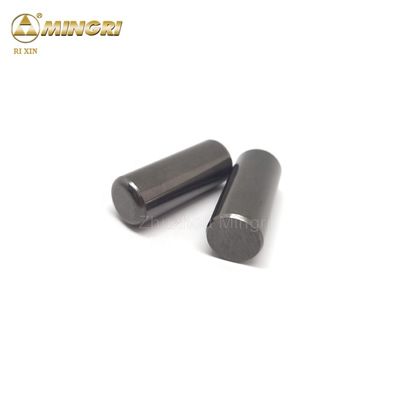

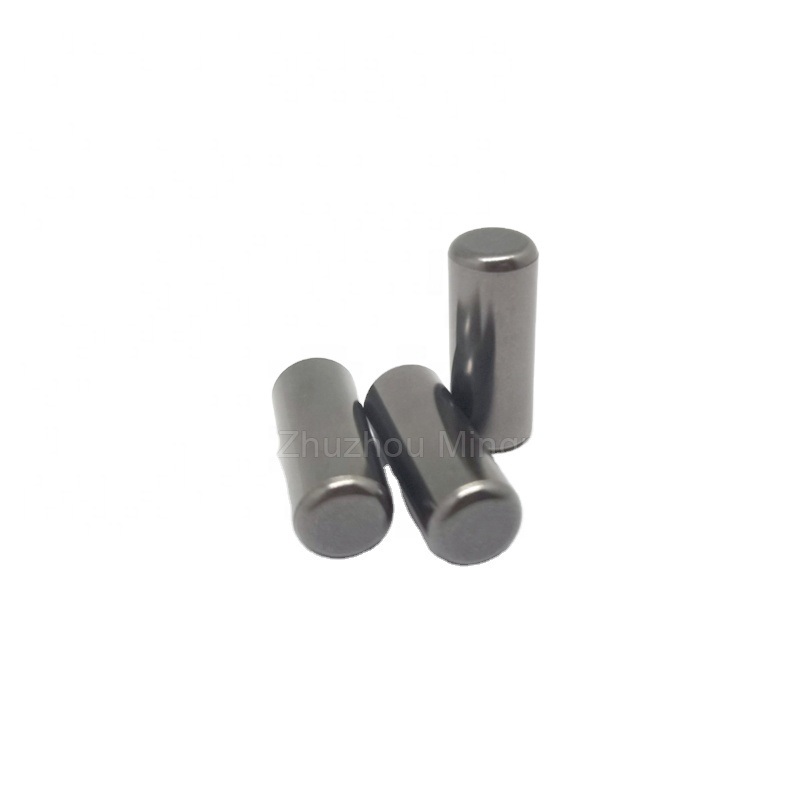

Durable & Anti-Wear Tungsten Carbide Studs for HPGR Rollers Cement Grinding
High performance cemented carbide studs designed for High Pressure Grinding Rollers (HPGR), offering exceptional wear resistance and extended service life in cement clinker, limestone, bauxite, and iron ore applications.
Product Specifications
| Item | Details |
|---|---|
| Type | Cemented Carbide |
| Grade | YG11C, YG15, YG15C, YG18, YG20 |
| Sizes | Standard or customized |
| Brand | Rixin |
| Origin | Zhuzhou, China |
| Usage | High pressure grinding roller, iron ore, cement crushing |
Grade Specifications
| Grades | Density (g/cm³) | Hardness (HRA) | T.R.S ≥N/mm² |
|---|---|---|---|
| RX-11 | 14.4 | 87 | 2700 |
| RX-15 | 14 | 87 | 3000 |
| RX650 | 13.8 | 88.2 | 3100 |
| RX20 | 13.5 | 85.5 | 3200 |
* Other grades available upon customer request.
Key Advantages
- Service life: 8000-10000 hours for iron ore crushing and over 25000 hours for cement crushing
- Total production capacity: over 800 tons of HPGR studs
- Excellent wear resistance and high compressive strength
- Custom sizes and grades available
Standard Sizes
Reference dimensions for High Pressure Grinding Roll Carbide Studs (mm):
| Diameter | Height | Dome | Chamfer |
|---|---|---|---|
| 20 | 40 | SR10 | 2xR5.0 |
| 20 | 35 | SR10 | 2xR5.0 |
| 20 | 30 | SR10 | 2xR5.0 |
| 16 | 55 | SR8 | R2.0 |
| 16 | 45 | SR8 | 2xR5.0 |
Quality Assurance
All products undergo strict ultrasonic inspection to ensure no internal defects. Our carbide studs feature high density, superior wear resistance, and impact resistance for maximum service life.
Manufacturing Capabilities
Our facility includes powder mixing, pressing, sintering, finishing, and surface treatment workshops with complete physical and chemical labs for quality control. Monthly production capacity exceeds 50 tons.
